🔧 Switch to power, precision, and protection—because your gear deserves the best!

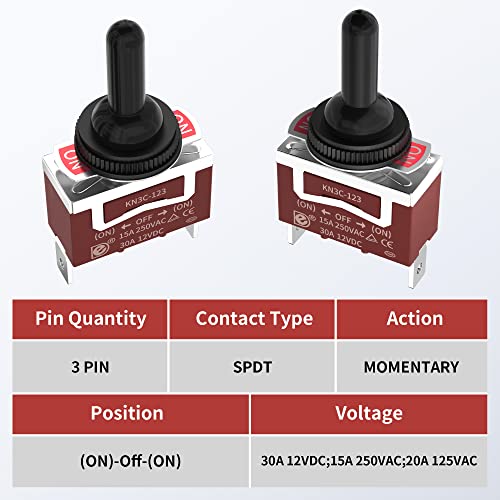

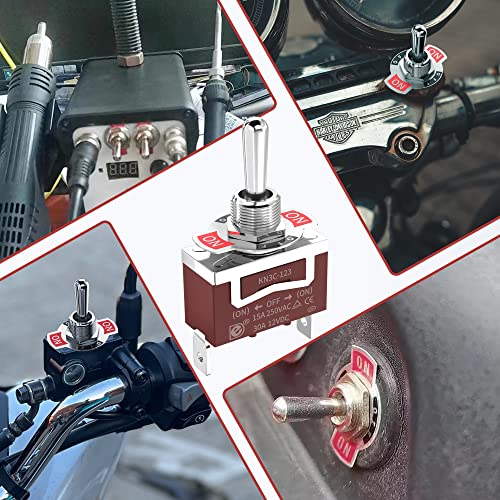

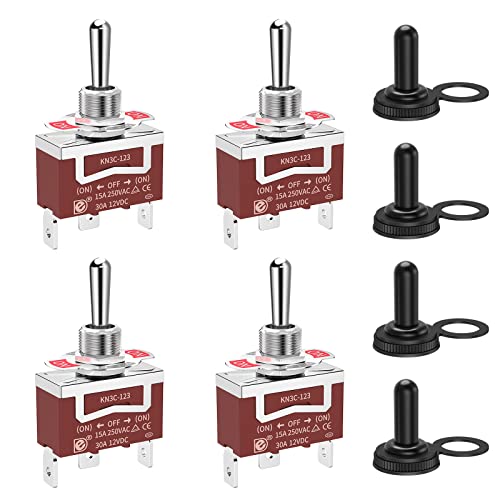

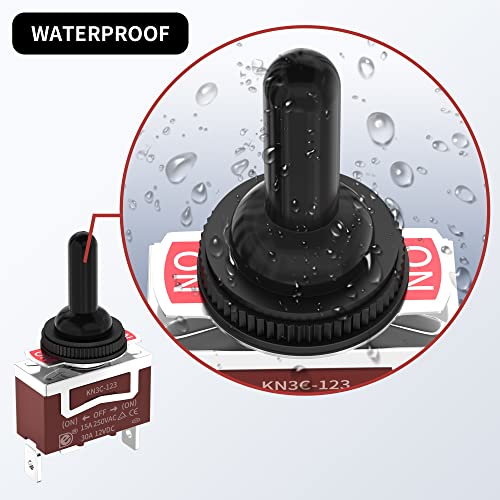

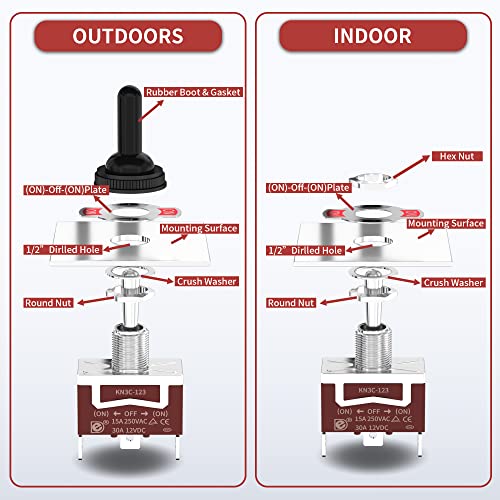

This 12V DC 30A waterproof momentary toggle switch features a durable 3-position SPDT design, ideal for marine, automotive, and outdoor applications. Rated for heavy-duty use with over 100,000 cycles, it includes 4 switches and waterproof boot covers for reliable, easy installation and long-lasting performance.













| AC Adapter Current | 30 Amps |
| ASIN | B0BV1M2LJN |
| Best Sellers Rank | #6,366 in Automotive ( See Top 100 in Automotive ) #29 in Automotive Replacement Toggle Switches |
| Brand | RVBOATPAT |
| Contact Material | Silver |
| Current Rating | 30 Amps |
| Date First Available | February 7, 2023 |
| Electrical Life Expectancy | 100000 Hours |
| Insulation Resistance | 250 |
| Item Weight | 5 ounces |
| Item model number | KN3C-123AP+WPC-06 |
| Manufacturer | RVBOATPAT |
| Material | Plastic |
| Mechanical Life Expectancy | 100000 Cycles |
| Mounting Type | Panel Mount |
| Operating Voltage | 12 Volts |
| Operation Mode | Momentary ON-OFF-Momentary ON |

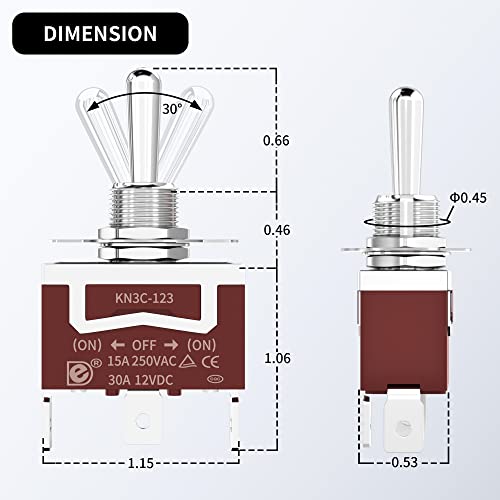

| Product Dimensions | 5.9 x 3.15 x 0.75 inches |
| Specification Met | CCC |
| Terminal | Spdt |
| Voltage | 12 Volts |
S**E
Solid performance
Quality built construction. Stood up to the elements for a few months now with no issues.
T**W
Work great
Not bad for the price and availability. Work great and rubber boots covers ok for now
E**E
Good product
Excellent product. Robust build.
K**P
Good replacement part
we use them for control switches in semis and they seem to work well and are cheaper than a dealer
T**E
Nice Switches
I like these switches. They appear well made. I installed one on my UTV to run the sprayer and it works as expected.
T**R
Worked like I needed
Excellent product recommend this product
T**N
Good qualit
Perfect replacement for my momentary switch.
F**G
Worked good
Was the exact switch inside of my Ramsey 8000 pound winch supposedly not replaceable but I cut it out carefully with a razor blade and silicone it back in works great just keep them out of the moisture
R**N
Holding up much better than unprotected switches so far on my bass boat. I sealed behind the plastic washer as well, everyhtign to try to keep the water from getting behind the dash and so far so good.
E**R
Exelente
K**K
Good product
J**É
Fonctionne très bien
D**N
Good quality used one for kill switch and one for fog lights
