Question 1

Does the switch face fit into a standard gang face plate? I want to install this into an existing 2 gang face plate but am concerned it won't fit.

Accepted Answer

I just installed it into a single gang box that previously had a Decora face plate.  After removing the old light switch,  IN ORDER TO FIT THE BULKIER HS220 I HAD TO DRASTICALLY TRIM THE 8 WIRES THAT WERE IN MY GANG BOX :  five 12-gauge wires (2 white neutrals in a wire-nut, 2 black hots in a wire-nut along with a red "line" wire that connected the hots to the light switch), two 14-guage wires (1 white neutral, 1 black "load" wire), and 1 long ground wire that was connected to a bunch of short ground wires.       Before trimming it seemed like there was absolutely no way it would fit, but I gave it a shot and it worked.  I trimmed off a full 33" combined from all of those wires (the 12-gauge wires each 4.5" longer than was needed, while the 14-gauges were each 3" in excess, and the long ground wire was 5" in excess).    I am glad I had a wire-stripping tool at home, otherwise this would have been much more difficult; with the wire stripper it was easy, but still time consuming.

Question 2

Will this control 3 lights in the same fixture? One review says no

Accepted Answer

I have no idea what that reviewer is referring to and their review is inaccurate.  This dimmer will control 3 and more lights in the same fixture with no problem.  I have one controlling 6 LED lights on one fixture and another controlling 2 pendant lights on the same circuit.

Question 3

can I dim the lights using alexa?

Accepted Answer

Yes - for more information regarding Alexa voice commands, please see our helpful FAQ here: https://www.tp-link.com/us/faq-1356.html

Regards,
TP-Link Support

Question 4

I have power but no lights?

Accepted Answer

You must be careful which "black" wire goes to which connection on this device.  You must connect the "Load" and "Supply" as indicated on the switch.  If the switch does not turn on the lights, it is likely the "Load" and "Supply" wires are reversed; try swapping them and retry turning on the lights.

ASIN	B07N3CK3MM
Best Sellers Rank	#9,468 in Tools & Home Improvement ( See Top 100 in Tools & Home Improvement ) #43 in Electrical Outlet Switches
Brand	Kasa Smart
Brand Name	Kasa Smart
Circuit Type	1-way
Color	White
Compatible Devices	Amazon Alexa, Google Assistant
Connectivity Protocol	Wi-Fi
Connector Type	Plug In
Contact Material	Plastic
Contact Type	Normally Closed
Control Method	Voice
Control Type	remote
Controller Type	Amazon Alexa, Google Assistant
Current Rating	15 A
Customer Reviews	4.6 out of 5 stars 7,795 Reviews
Global Trade Identification Number	00840030700217
Included Components	Kasa Smart WiFi In-Wall 2 Outlet, Works With Alexa And Google
International Protection Rating	IP00
Item Dimensions	1.73 x 3.33 x 5.11 inches
Item Weight	6.4 ounces
Manufacturer	TP-Link
Material Type	Plastic
Model	KP200
Mounting Type	Wall Mount
Number of Items	1
Number of Positions	1
Operating Voltage	125 volts
Operation Mode	ON-OFF
Part Number	KP200
Specification Met	ETL
Switch Type	Outlet Switch
Terminal	Screw
UPC	840030700217
Unit Count	1 Count
Upper Temperature Rating	40 °C
Wattage	1875 watts

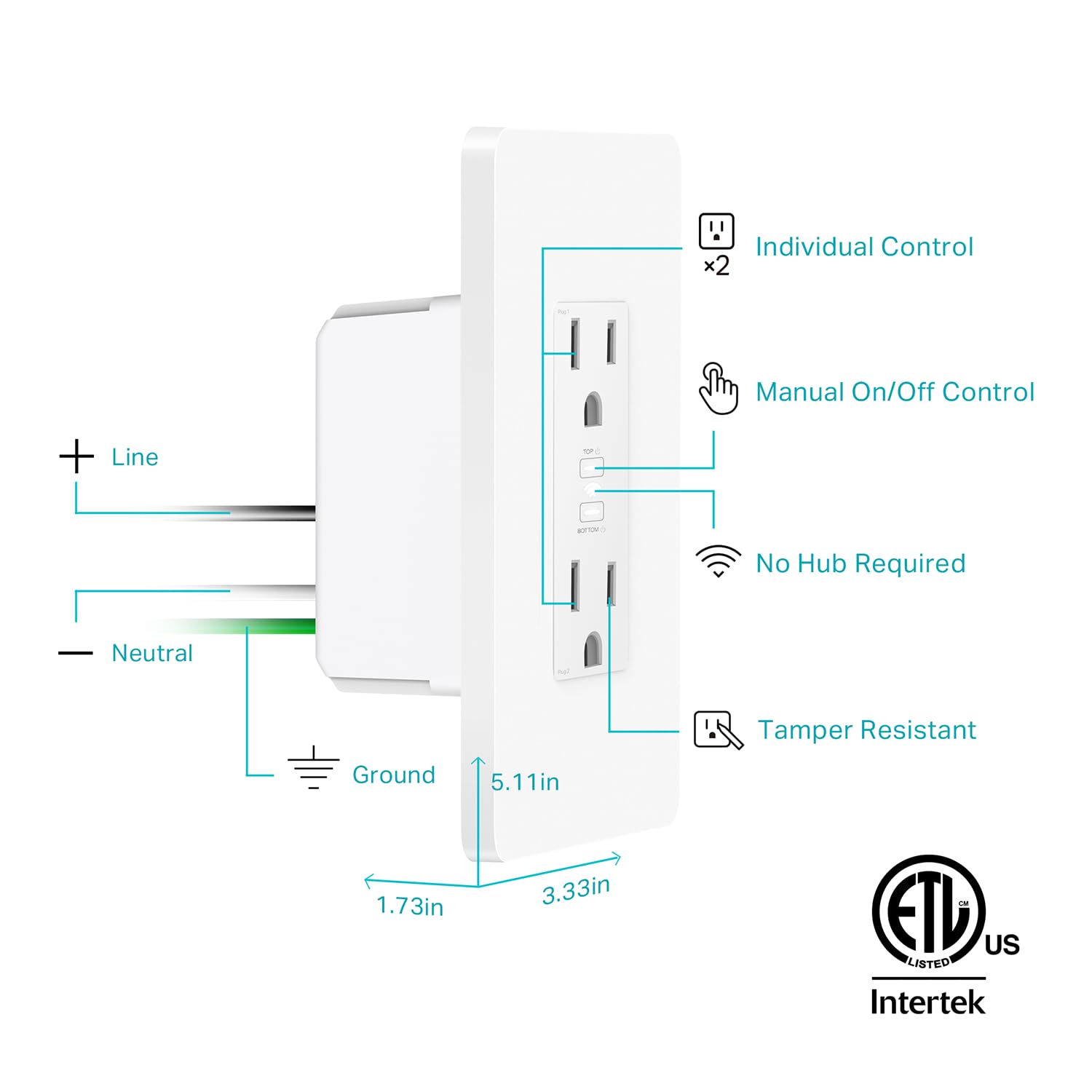

Kasa Smart Plug KP200, In-Wall Smart Home Wi-Fi Outlet
