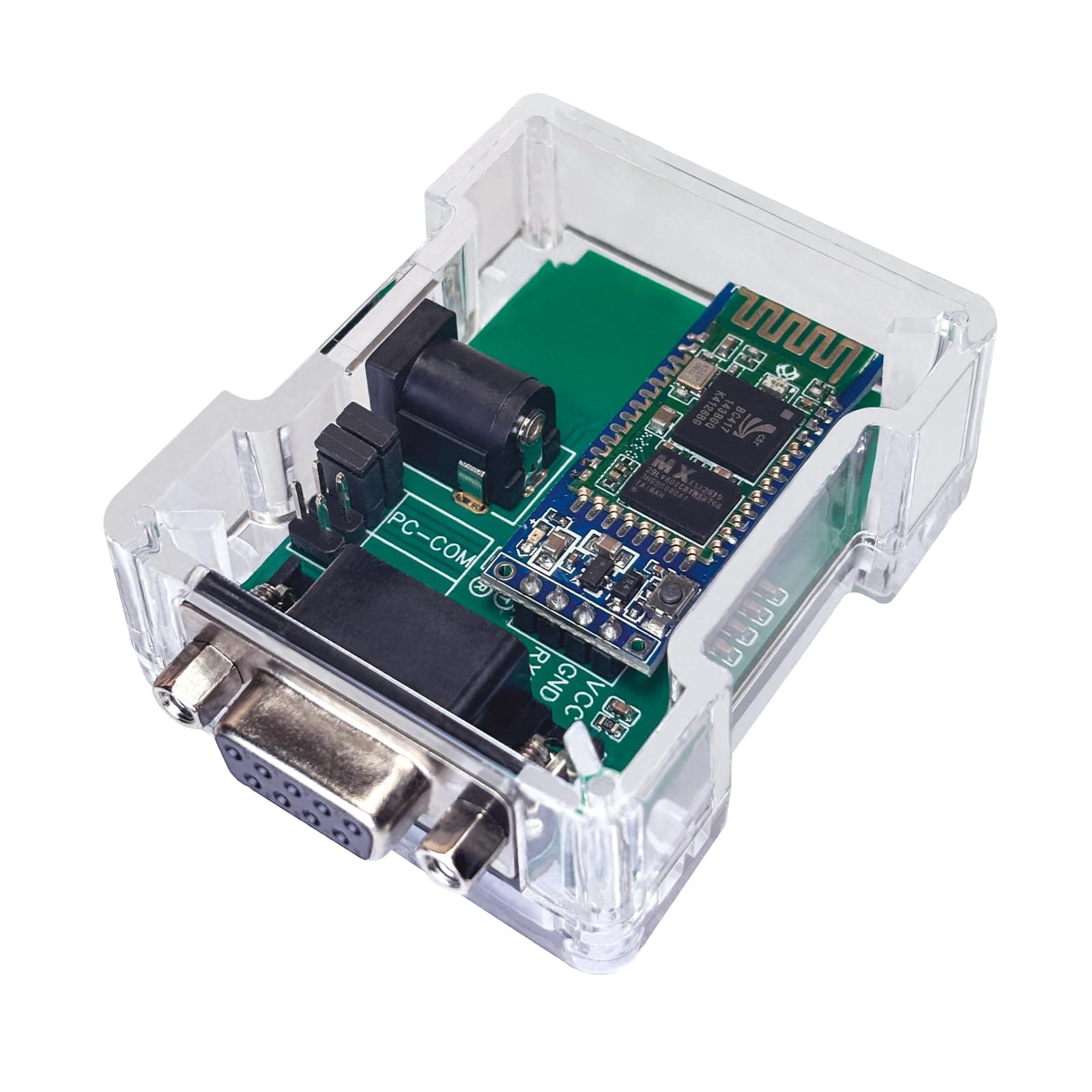

DSD TECH SH-B23A Bluetooth 2.0 to RS232 Serial Adapter with DB9 Converter

I'd been using the IOGear GBC232A for my projects and spending $70/ea on them. Wish I'd found out about this unit sooner - it does the same thing for a fraction of the price. I've only been using it for < 24 hours, but so far it seems to perform just as well as the IOGear. It also defaults to the sensical 9600, 8N1 so it pretty much works for me right out of the box without any configuration whereas the IOGear's default is 19200. The one issue is that when I use it with devices where a straight-through cable typically works, I have to pair a null modem gender changer with this box instead of the regular one they include - not sure why they don't just include a null modem instead? UPDATE 2/13/2021 - at this point I have purchased and deployed around 20 of these units in the past few months to various customer sites. So far, one simply died after a few weeks of use and another has struggled / refused to connect out of the box. A ~10% defect rate is quite high. Update March 2023 - at this point I have over 80 of these at customer sites and they perform well and are reliable. Other than the occasional one that doesn't work out of the box, none have died since my previous review so I'm updating this to 5 stars.

I found a guide to program this little guy to work with my microsquirt. I guess the main instructions are missing a key item. Oh, -1 star because half the pins in the gender adapter were bent. As posted by PFloor on msextra: Download their app. Use the HC-05 tab in the software. OPEN up the case (remove 4 screws). Make sure jumpers are on "PC" Connect to pc via serial port. Select UART (comm port), 9600 Baud and "Open". IMPORTANT!!! Press the tiny button on the board to put it in "programming" mode (this critical step is missing from all instructions). Press "Test". If you get an "OK" reply, you are good to go. If no "OK", you will not be able to program it. You may need to press the button first, then open the port. Set the name and PIN if desired. Change the Baud Rate to 115200 (this is required). Leave role as "Slave". IMPORTANT!!! Put jumpers on "Device" Test on MS Re-assemble case

I'm an IT hobbyist, not an IT professional. I have above average knowledge for sure. I'm using these for perhaps a unique use case, having one computer transmit data to another computer (multiple, actually). I'm a court reporter, and I can send my realtime transcription to other computers so it can be viewed by attorneys or whomever. There are a few ways to do this (many cloud based options charge high fees), but the classic/free way is via wired serial connection. Ancient tech, but (with a USB to serial cable) it works. I wondered, could I possibly find some wireless solution? And I found this. Like many others, hours of trial and error later, and it works! I could not get it to communicate with the built-in Bluetooth on my laptops, but when pairing it with the Startech USBBT1EDR2 (which I literally had lying around), it works like a charm. I wish I didn't need the extra Bluetooth dongle -- maybe a geekier man than me wouldn't -- but I'm happy.

Bought this to allow reading of RS232 scale to be placed inside a vac chamber, to allow wireless weights while chamber was sealed. Barely worked outside (have to move jumpers from PC-COM to DEVICE or scale would not respond at all), with power provided by computer USB port. Once placed inside chamber, power coming from a 5V supply (battery phone recharger) or from lithium battery stack, would turn off after 60s. Gave up. Odd that it worked with a computer 5V USB out, but not with 6.4V battery or phone recharger. Don't trust this to work - many other reviews about random product substitution. Other reviews have some workarounds that are handy, but look for a different widget than this.

The box is really nice. The entire thing must be taken apart when attempting to change the jumpers. Will not drive a DCE if the DCE required DTR/RTS/CTS hardware handshake (unlike usb portio interfaces). Also, be prepared with a null-modem to get 2/3 to cross and get a breakout box to debug. Do not see the +-10vdc level converter, so your device must respond to ttl levels. When programming a modem ignore all dtr and cts/rts settings. Here is a setup that might work: USRobotics Courier V.Everything Settings... B0 C1 E1 F1 M1 Q0 V1 X1 BAUD=9600 PARITY=N WORDLEN=8 DIAL=TONE ON HOOK TIMER &A1 &B0 &C0 &D0 &G0 &H0 &I4 &K1 &L0 &M4 &N0 &P0 &R1 &S0 &T5 &U0 &X0 &Y1 %N6 #CID=0 S00=000 S01=000 S02=043 S03=013 S04=010 S05=008 S06=002 S07=060 S08=002 S09=006 S10=014 S11=070 S12=050 S13=000 S14=001 S15=000 S16=000 S17=000 S18=000 S19=000 S20=000 S21=010 S22=017 S23=019 S24=150 S25=005 S26=001 S27=000 S28=008 S29=020 S30=000 S31=000 S32=009 S33=000 S34=000 S35=000 S36=000 S37=000 S38=000 S39=000 S40=000 S41=000 S42=126 S43=200 S44=015 S45=000 S46=000 S47=000 S48=000 S49=000 S50=000 S51=000 S52=000 S53=000 S54=064 S55=000 S56=000 S57=000 S58=000 S59=000 S60=000 S61=000 S62=000 S63=000 S64=000 S65=000 S66=000 S67=000 S68=000 S69=000 S70=000 I use: ati4 to print this out on an external USR modem. DSD tech support can't really help, they can just offer to do a replacement, which very nice, but not helpful. This is just got design issues, no hardware handshake, incorrect level voltages, etc. Replacement will not help! This is not an RS232 EIA compatible device...close, but not quite!

mooi afgewerkt. goede behuizing. Goed verpakt om te versturen. Snel geleverd. Top. Dirk

Oggetto indispensabile per collegare,bluetooth, un vecchio palmare necessario per il trasferimento dei dati di una stazione totale tipografica. Montato e configurato funziona perfettamente.

Seit 3 Jahren begleitet mich dieser kleine BT Adapter einwandfrei im Berufsleben. Ich muss mich oft auf diverse Geräte aufschalten (Switche, Router, FW, etc) Der wesentliche Vorteil, gegenüber Kabelgebundene Lösungen, ist der das ich die laute Umgebung (die ich teilweise vorfinde) verlassen kann und aus dem "leisen" Nachbarraum arbeiten kann. Die Rezension nach 3 Jahren auch aus dem Grund.... Heute ist das Ding mal runtergefallen und das Gehäuse hat es nicht überlebt (Der Deckel ist abgesprungen) Ich kleb das aber mit Sekundenkleber fest und wenn es dann wieder 3 Jahre hält bin ich nicht unglücklich und geben wirklich guten Gewissens volle 5 Sterne. Und bei dem Preis erst recht....

Useless unfortunately. Could not get the devices to perform even basic functionality. Terrible on line support, manufacturers website even refers you to other ‘insecure’ websites. Google search shows many others users struggling to get basic functionality working. Don’t buy these 😔

Had some problems with this as a cheap solution to connect on to Celestron (SLT mount) but it did work out great. A few things to note assuming you already know how to control your scope via a wired USB virtual serial port. (This unit connects to the bottom on the handset same as your wired serial connector). I powered this from a small 5v power bank and connected it as above but at first I could get no response from it. In order to troubleshoot I connected it in UART mode - connecting to direct to PC via USB virtual serial port but could not get it to acknowledge an 'ok' on software command and ask the supplier tech service for help (no reply, waste of time). I discovered that unless connections are dead tight it would not work- that sorted reconnected again and noticed the blinking led paused on trying to connect to scope. Had to reverse RX and TX wires (the only other one is GND, going to the handset) and got various messages about 'semifore time out' and 'no serial port' and 'no celestron scope detected'. Days later found that either unplugging the 5v power to the device ( it goes into sleep mode) or simply delete the com port in Windows (device manager > Bluetooth serial port> uninstall and then right click and reinstall which takes only a minute) - all errors go away and you have the pleasure of using your phone/tablet/laptop to control the scope. A few times I needed to briefly unplug the 5v supply to it when I see the led does not go steady(i.e not connecting) but no problem as it will reconnect on next attempt and you don't lose alignment. Hope this saved someone a lot of heartache!
