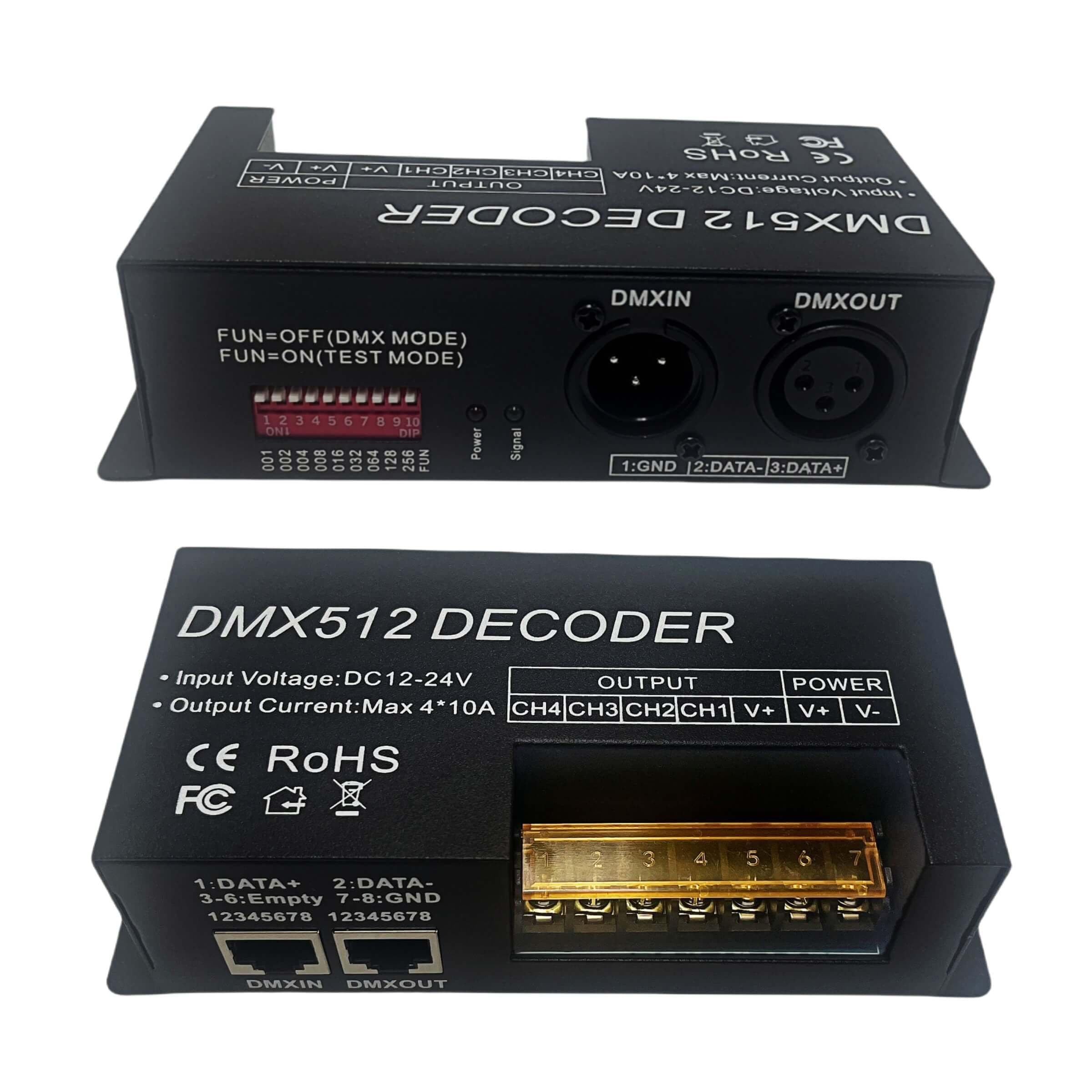

GIDERWEL 4 Channel DMX Decoder RGBW PWM DMX512 Dimmer Driver RGBW LED Strip Light DMX Controller Input 12V-24V DC

Q: Is product documentation available as a pdf of jpeg file?

Comes with printed instructions

Q: is it constant current?

You need to purchase a DC power supply to go with this. The output current is DC. The voltage out is controlled by whatever DMX lighting software or board you are using. This then allows you to control colors and brightness.

Q: Can i use this decoder for led strip lights below 12v? like 5v lights? or not, because lowest allotted power input is 12v?

This decoder Input Automatically adapt to DC12V-24V,And Output Max power load:240W(12V);480W (24V). it can't used with 5v LED Strip.

Q: Will these work with wireless DMX receivers via the XLR plugs?

Yes, this dmx decoder can be used with the wireless DMX receivers

ID del producto: 89167923

Transacción segura

Detalles

Color
RGBW
Brand
GIDERWEL
Indoor/Outdoor Usage
Indoor
Special Feature
Color Changing
Light Source Type
LED
Power Source
DC Power

⚡Max 480W output power

🔗DMX512 & RJ45 connectivity

🎛️4-channel PWM dimming control

Descripción

🎨 Light up your space like a pro — control every color, every mood, every moment.

COMPACT MODERN - Sleek 6.1 x 3.46 x 1.38 inch design fits perfectly in any indoor stage or event setup.
PRECISION CONTROL - 4 independent PWM channels deliver smooth RGBW dimming with 15 modes and 30 speed steps.
SEAMLESS INTEGRATION - Compatible with standard DMX512 consoles via XLR-3 and RJ45 for professional-grade control.
POWERHOUSE PERFORMANCE - Supports up to 480W at 24V for vibrant, high-impact lighting setups.
PLUG PLAY VERSATILITY - Auto-adapts to 12V-24V DC input, making installation effortless and flexible.

The GIDERWEL 4 Channel DMX Decoder is a high-powered RGBW LED dimmer driver designed for professional indoor lighting control. It converts DMX512 digital signals into precise PWM outputs, supporting up to 480W at 24V with 4 independent channels. Featuring easy DMX address setup, multiple dimming modes, and versatile connectivity via XLR-3 and RJ45, it’s the ultimate tool for dynamic stage and event lighting.

Presupuesto

Color	RGBW
Brand	GIDERWEL
Indoor/Outdoor Usage	Indoor
Special Feature	Color Changing, Dimmable
Light Source Type	LED
Power Source	DC Power Supply
Light Color	rgbw
Theme	DMX 512, DMX Lighting, LED Lighting
Occasion	Stage lighting
Style	Modern
Material	Plastic
Controller Type	Button Control
Connectivity Protocol	DMX, DMX DECODER
Connectivity Technology	DMX
Number of Light Sources	1
Voltage	24 Volts (DC)
Wattage	240 watts
Included Components	Fiber Optic Light
Number of Items	1
Item dimensions L x W x H	6.1 x 3.46 x 1.38 inches
Control Method	Remote
Water Resistance Level	Not Water Resistant
Seasons	All Seasons
UPC	723172171735 723172173661
Manufacturer	GIDERWEL
Part Number	1
Item Weight	1.4 pounds
Product Dimensions	6.1 x 3.46 x 1.38 inches
Item model number	QJ-L016
Is Discontinued By Manufacturer	No
Assembled Height	1.38 inches
Assembled Length	6.1 inches
Assembled Width	3.46 inches
Special Features	Color Changing, Dimmable
Plug Format	Wiring port
Batteries Included?	No
Batteries Required?	No
