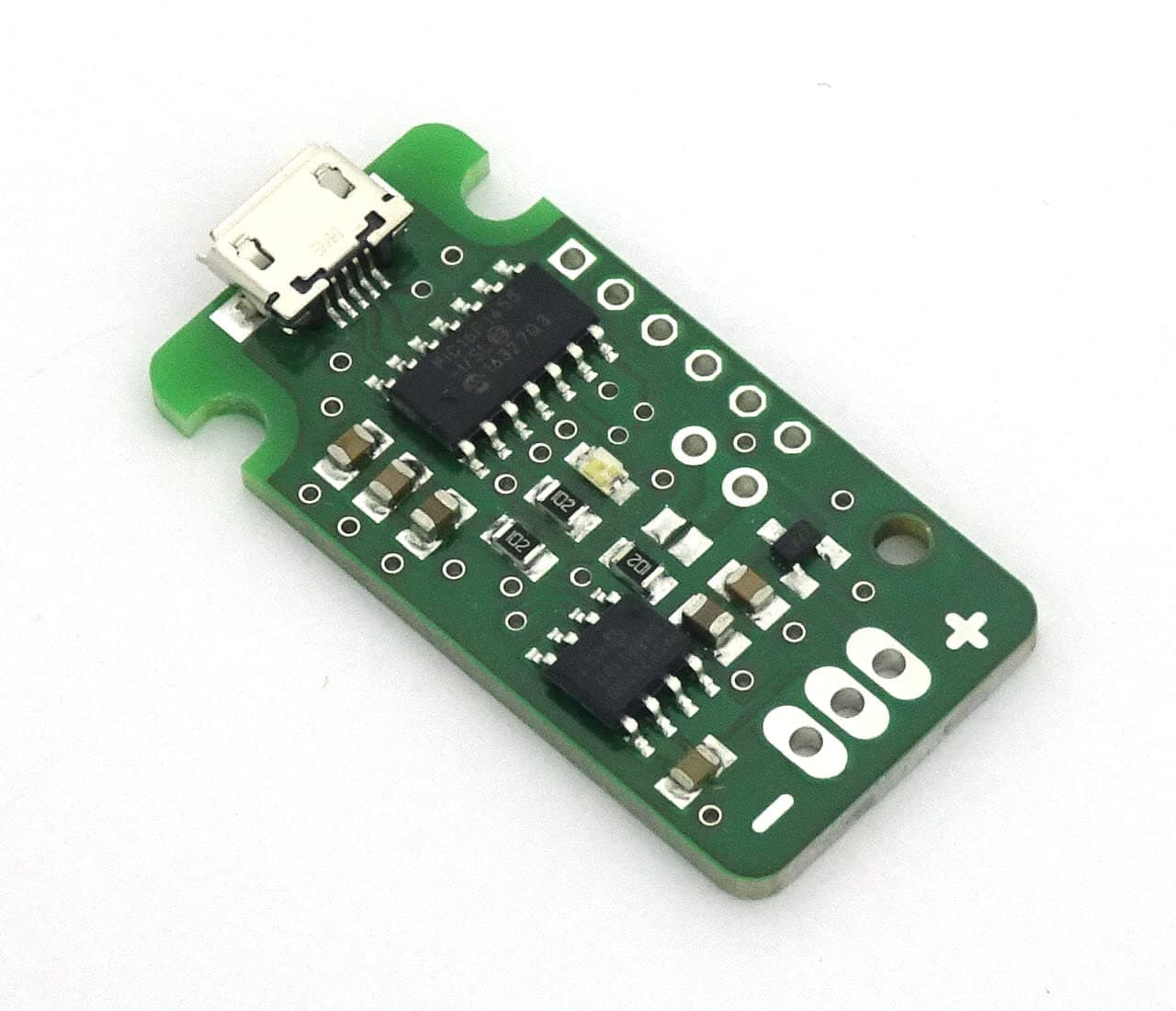

Generisch USBlini EB USB-LIN Adapter Evaluation Board SMD

Descripción

USBlini EB is the evaluation board for the USBlini project, the USB-to-LIN interface. The adapter can be connected to a LIN bus as a master or slave. It offers a logic analyzer function that allows the logic level to be recorded on the LIN bus regardless of the baud rate. Features: - Open source Python library (Windows, MacOS, Linux). - Can be used as master (creates frames) and slave (responds to master requests) - Logic analyzer function: sampling the logic levels on the LIN-RX line with 100ksps. - Integrated 1kOhm Master Pullup - Flexible baud rate setting via software 1200 – 20000 Baud (e.g. 9600, 10400, 19200) - Firmware source code available; bootloader for firmware updates Datasheet, drivers and software are available for download from the USBlini project homepage.
