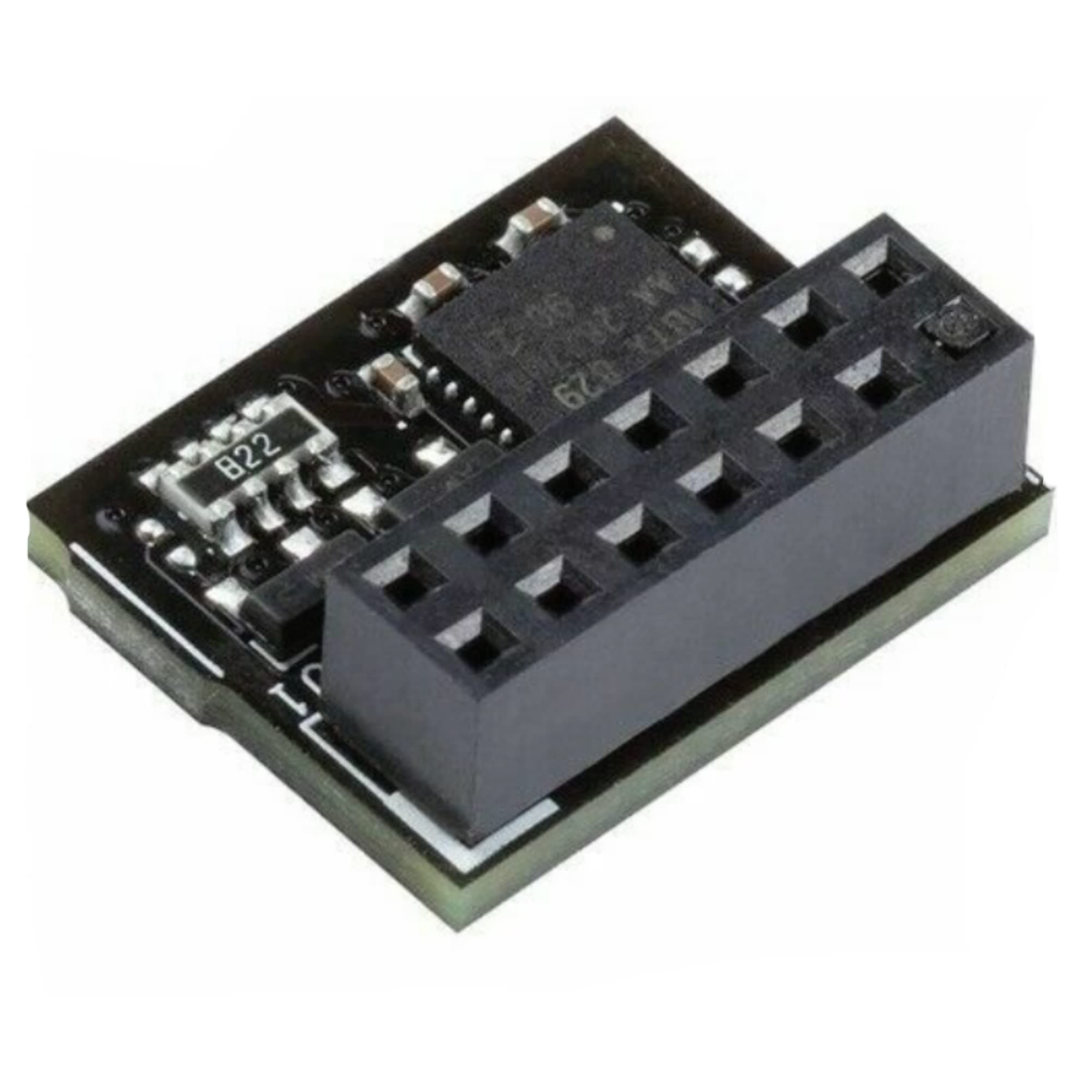

Asus TPM-SPI Trusted Platform Module (TPM)

Worked as hoped. Made sure my ASUS TUF GAMING X570-PLUS motherboard TPM header had the correct 14 pin layout before ordering, and it fit perfectly. Item shipped quickly and arrived on time. Had to setup the BIOS for discrete TPM instead of FW, and once that was done, it showed up in Win10 just fine after running tpm.msc.Correcting another reviewer's reference to the CVE, which helped me make this purchase, it is CVE-2020-25082 with a low base score of 3.8. "An attacker with physical access to Nuvoton Trusted Platform Module (NPCT75x 7.2.x before 7.2.2.0) could extract an Elliptic Curve Cryptography (ECC) private key via a side-channel attack against ECDSA, because of an Observable Timing Discrepancy." This module came with 7.2.2.0, although that vuln requires physical access to the TPM module to exploit.

Be careful to buy the correct module. It works great, but it wasw difficult to pick out the correct model to fit my ASUS mobo.

Product compatible with my strix asus motherboard. Was able to upgrade my os from windows 10 to windows 11. Plugged it to my motherboard, rebooted my pc and it recognized it right away.

Fits Perfect on my ASUS Z490 Motherboard, ( next to the battery ) and it's a must have for installing Windows 11-Thankfully it did not cost me much.

Didn't work for me. Couldn't plug it into my motherboard. Motherboard has a 14-1 connector with the -1 pin in the middle of the connector. The module has the -1 pin on the corner of the connector. The module is not compatible with my motherboard contrary to what the Asus website says. I'm sure it works great with the correct motherboard, but unfortunately that isn't what I have.

Works with my Asus TUF gaming X570-plus (wi-fi) motherboard. It took two reboots before Win10 would recognize it. Once it did the upgrade to win11 went smoothly.

Bricked my computer. Removing the TPM chip, clearing the CMOS and removing the backup battery didn’t help. Buyer beware

The piece is very small, and the manual for the ASUS motherboard (X570 STRIX in my case) shows a diagram where it needs to be plugged in to some pin headers, just adjacent to the CPU and graphics card slot.The only issue is that the spot is going to be below the graphics card (in my case a 2080ti).So needing to pull the graphics card out, and then finding a way to press this small board down on a header that is somewhat underneath the CPU cooler.... you can't get your hand/fingers in there.My solution seemed to work well - get some poster tack / blue tack, and a pencil with a squared off eraser (or a dowel or a pen with a flat end). Apply the tack to the squared of end of the pencil, then stick the top side to that tack. This puts the tiny board on the end of a stick held on by the tack. Now you can carefully maneuver it down and over the pin header under the CPU cooler. Press it down carefully (be sure to align the keyed pin correctly), and it slides on easily enough. Twist the pencil and the blue tack off and bobs your uncle.Reinstall graphic card, put the rest of the tower back together, boot up and enter the BIOS/UEFI and go to the security/advanced section to make sure the TPM is enabled and selected (and not the CPU based software TPM). Booting into Windows and checking by running TMP.msc to verify its up and found.. and it was. Good to go.Now the only thing standing between going to Windows 11 is deciding if I want to enable UEFI in place of BIOS, with the recovery boot nightmare that can cause... so for now I'm staying BIOS and Windows 10.
